Arduino Mega 2560 R3 ( A000067 )

Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiringlanguage. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).

The Arduino Mega is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

This is the new Arduino Mega 2560 R3. In addition to all the features of the previous board, the Mega 2560 R3 now uses an ATmega16U2 instead of the FTDI chip. This allows for faster transfer rates, no drivers needed for Linux or Mac (inf file for Windows is needed), and the ability to have the board show up as a keyboard, mouse, joystick, etc. It also has twice as much flash memory.

The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

Includes:

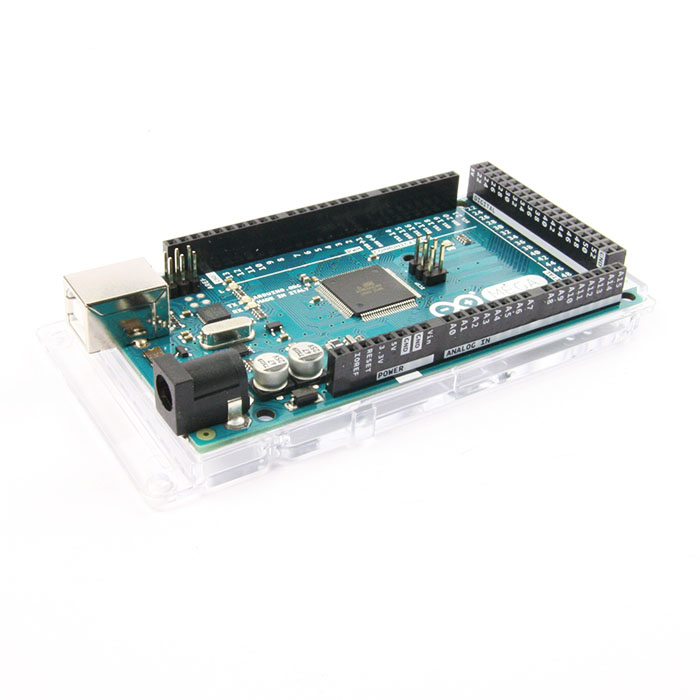

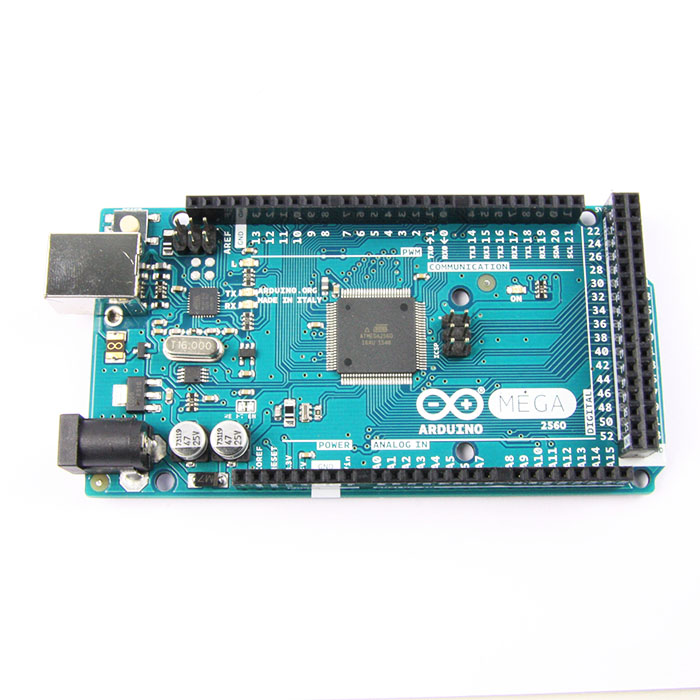

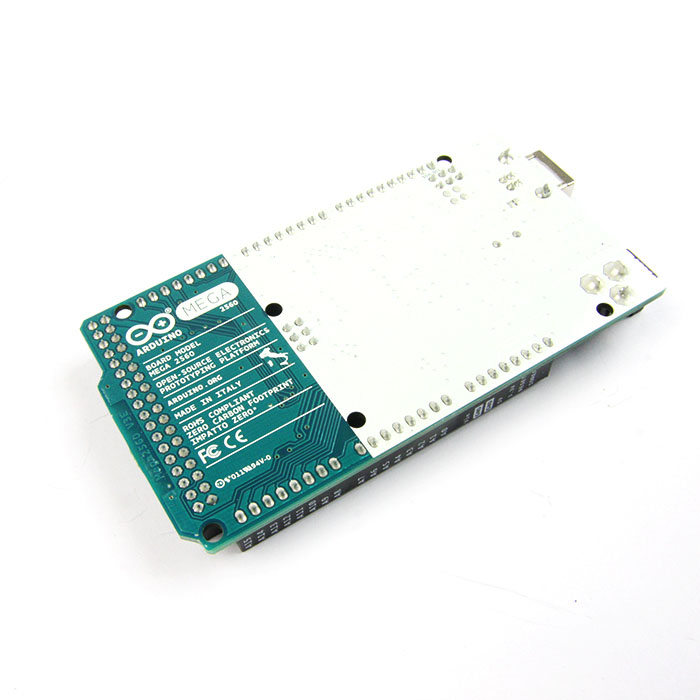

• Arduino Mega 2560 R3 board

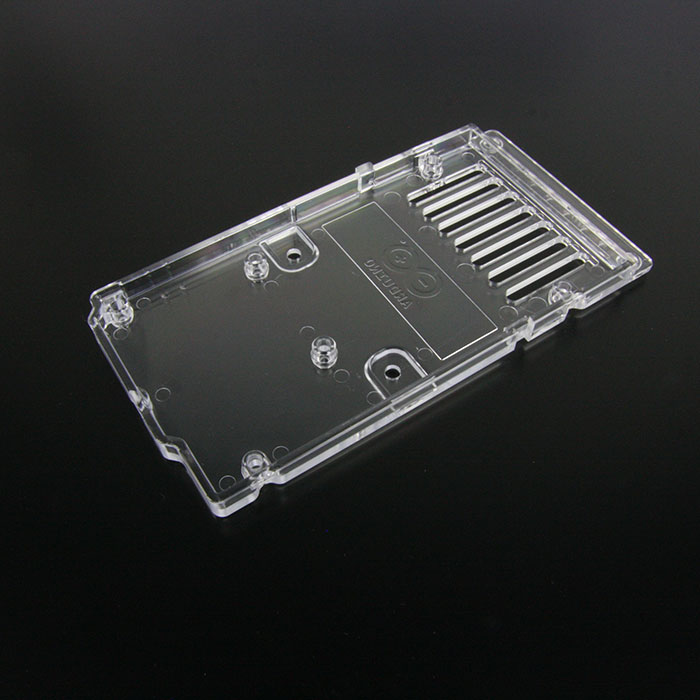

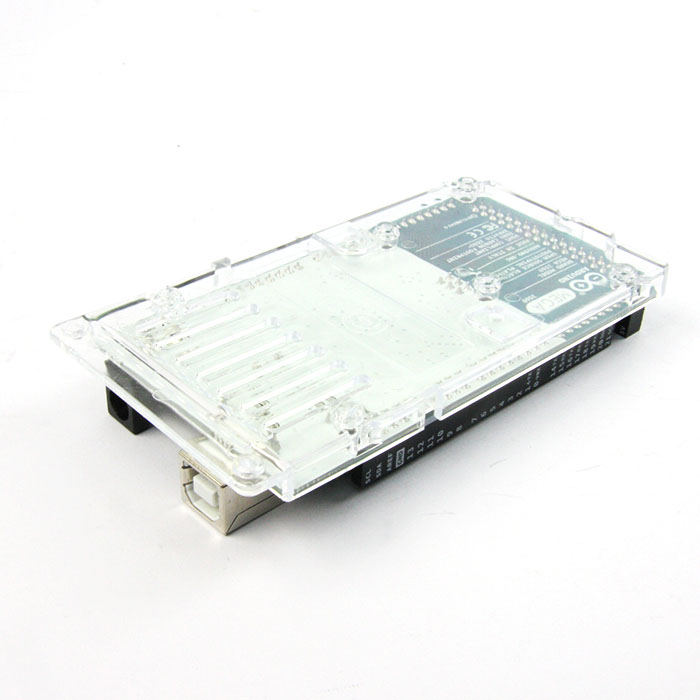

• Clear plastic holder

Features:

• ATmega2560 microcontroller
• Input voltage - 7-12V
• 54 Digital I/O Pins (14 PWM outputs)
• 16 Analog Inputs
• 256k Flash Memory
• 16Mhz Clock Speed

Documents:

• Product Page
• Schematic
• Programming Reference
