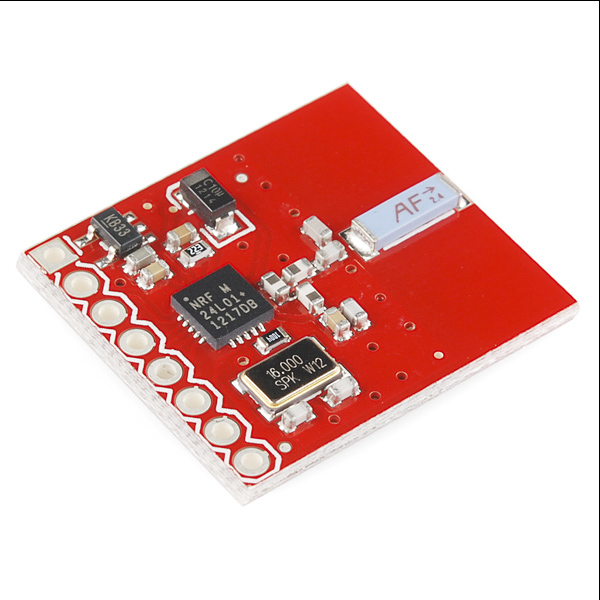

Transceiver nRF24L01+ Module with Chip Antenna

This module uses the newest 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice!

Please note: We now populate these boards with the nRF24L01+. The '+' version of the IC has improved range, sensitivity, and data rates. The command set is backward compatible with the original nRF24L01.

Features:

• On-board 3.3V LDO Regulator (3.3 to 7V supply allowed)
• On-board ceramic 2.4GHz Antenna
• 50m Range at 1000kbps
• 2Mbit Data Rate
• Auto Acknowledge
• Auto Re-Transmit
• Multiceiver - 6 Data Pipes
• 32 Byte separate TX and RX FIFOs
• 5V tolerant input pins
• Software selectable channel: 2400MHz to 2525MHz (125 Selectable channels)
• Minimum number of external components

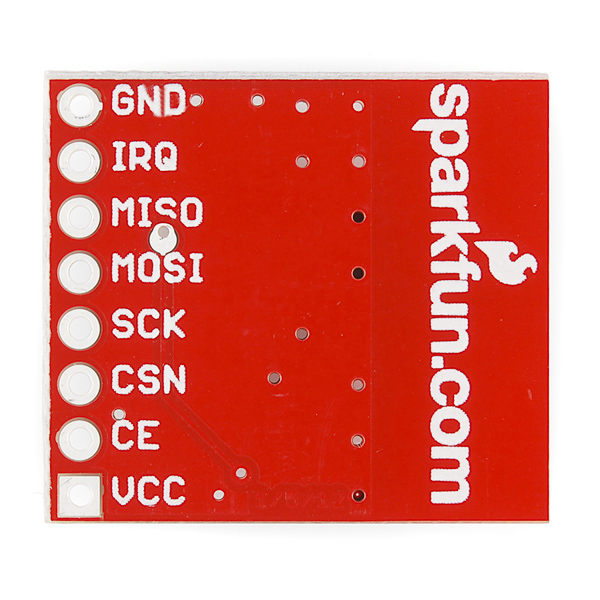

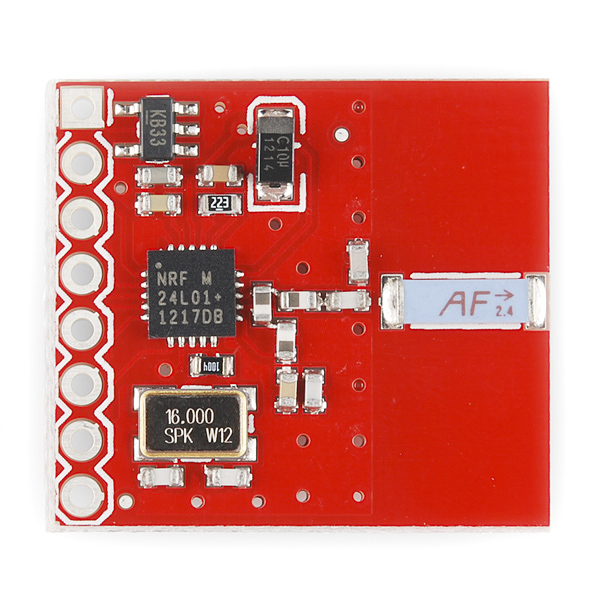

• Pins broken out : VCC, CE, CSN, SCK, MOSI, MISO, IRQ, GND
• Lots of application notes and support on Nordic Semiconductor Website

Documents:

• Schematic
• nRF24L01+ Datasheet

Software:

• Example PIC Code

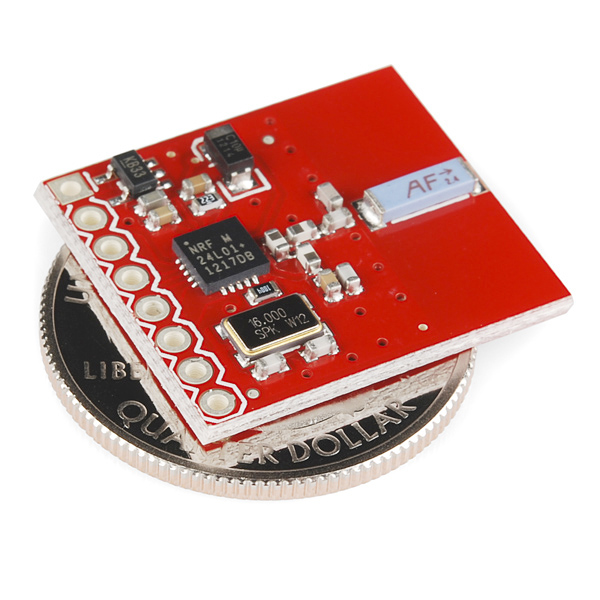

Dimensions: 0.8x0.9"
