Teensy SmartMatrix Shield Kit for RGB LED Panel

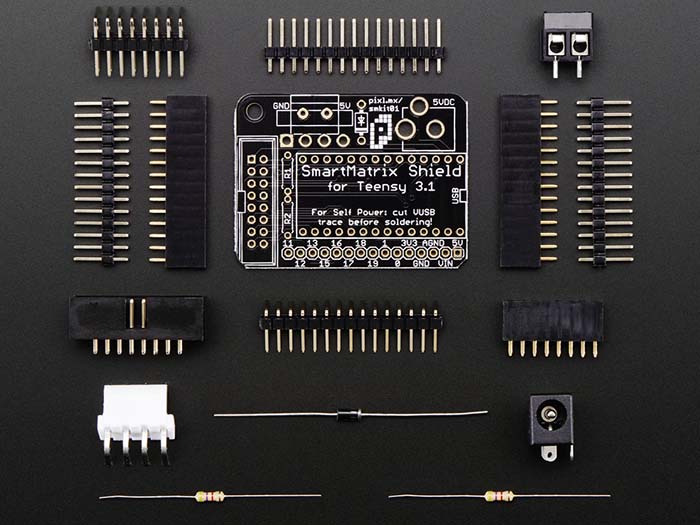

The SmartMatrix Shield is the best way to connect the Teensy 3.2 to Large RGB LED matrix display panels. The shield makes it easy to connect the 13 signals required to drive the display, connects an external 5V supply to power the display and Teensy, and brings out the Teensy's free signals to a convenient header.

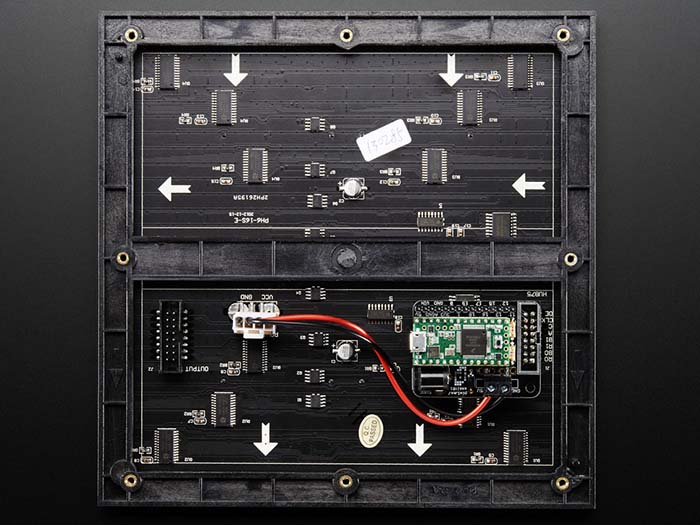

The SmartMatrix Shield includes multiple options for connecting the Shield to the display, using either the ribbon cable included with the display, or attaching the shield directly to the display. The shield includes connectors for power, to match the power cables included with the RGB displays.

Documents

• Assembly Guide
• Animated GIF Tutorial (via Adafruit Learning)
