Standard LCD 16x2 - White on Blue 5V

-50%

In-Stock: 403 pc(s)

CODE: DIS-01778

$2.90

List price: $5.80

This is a standard 16 character by 2 line display. White text on Blue background. Utilizes the extremely common HD44780 parallel interface chipset ( datasheet ). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Features :...

QTY:

− +

Add to Cart

Add to Wishlist

Description

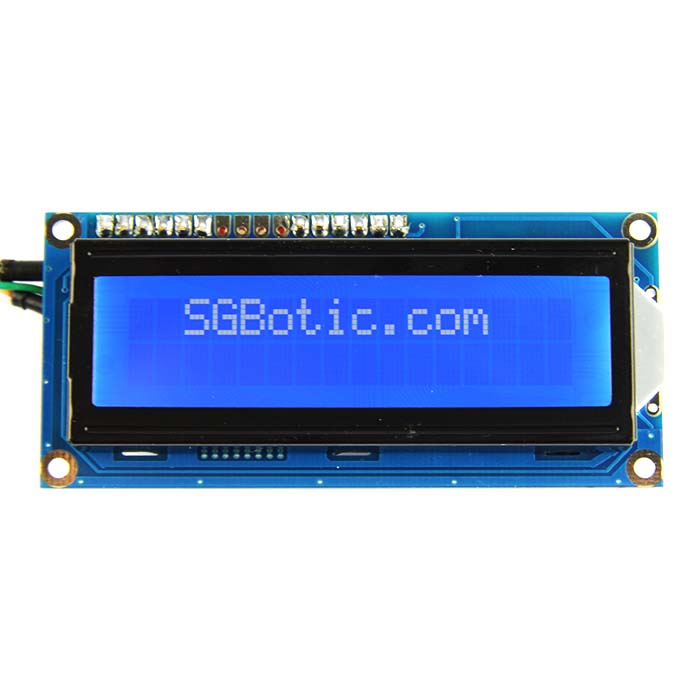

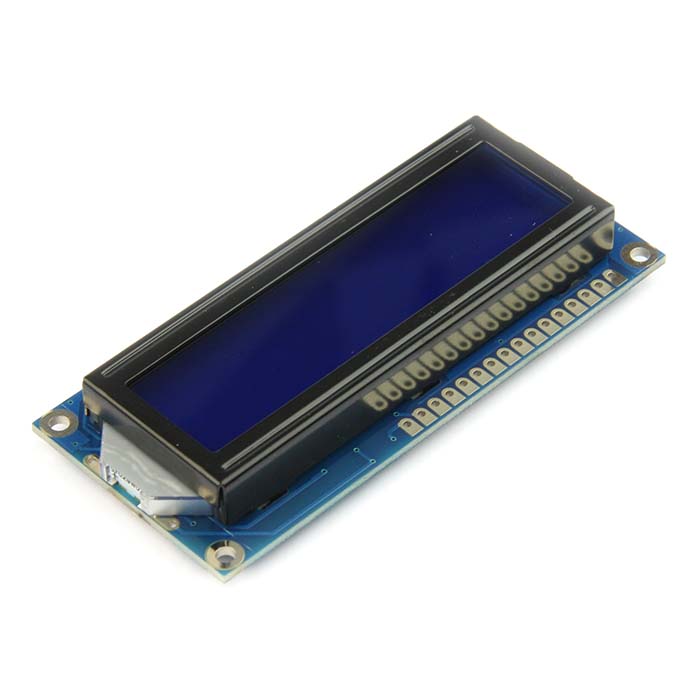

This is a standard 16 character by 2 line display. White text on Blue background. Utilizes the extremely common HD44780 parallel interface chipset (datasheet). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen.

Features:

16 characters wide, 2 rows
White text on blue background
Connection port is 0.1" pitch, single row for easy breadboarding and wiring
Single LED backlight included can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
Up to 8 extra characters can be created for custom glyphs or 'foreign' language support

Documents:

Dimensions: 80 x 36mm
