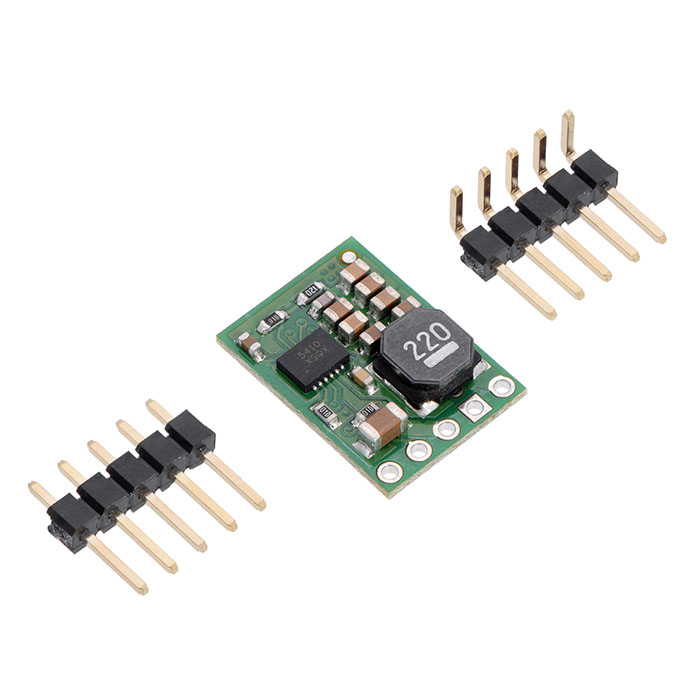

12V, 1A Step-Down Voltage Regulator D24V10F12

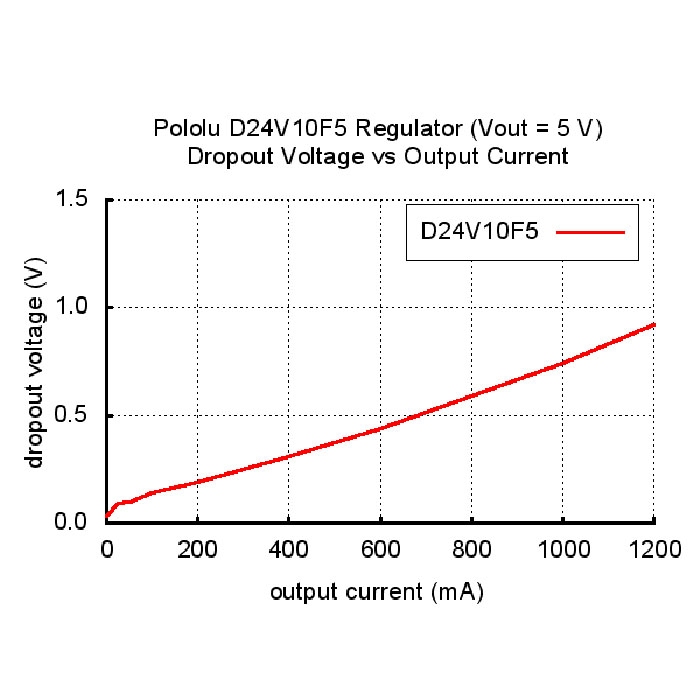

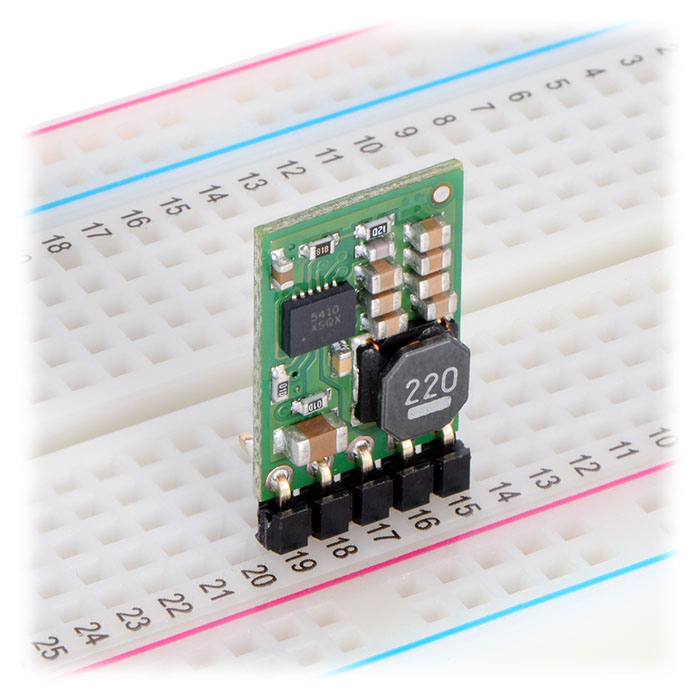

This D24V10F5 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 12 V while allowing for a maximum output current of 1 A. This regulator offers typical efficiencies between 85% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 5 V. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

Specifications:

• Minimum operating voltage: 12.1V
• Maximum operating voltage: 36V
• Maximum output current: 1A
• Output voltage: 12V
• Reverse voltage protection: No
• Maximum quiescent current: 0.2 mA

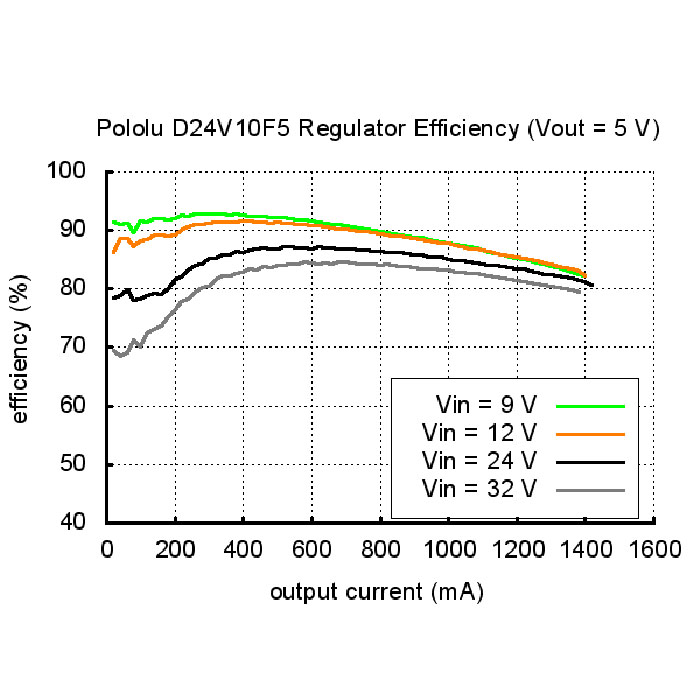

• Typical efficiency of 80% to 93%

Documents:

• Datasheet (Intersil ISL85410)
• Schematic

Dimensions:

• 18 x 13 x 3.5mm
