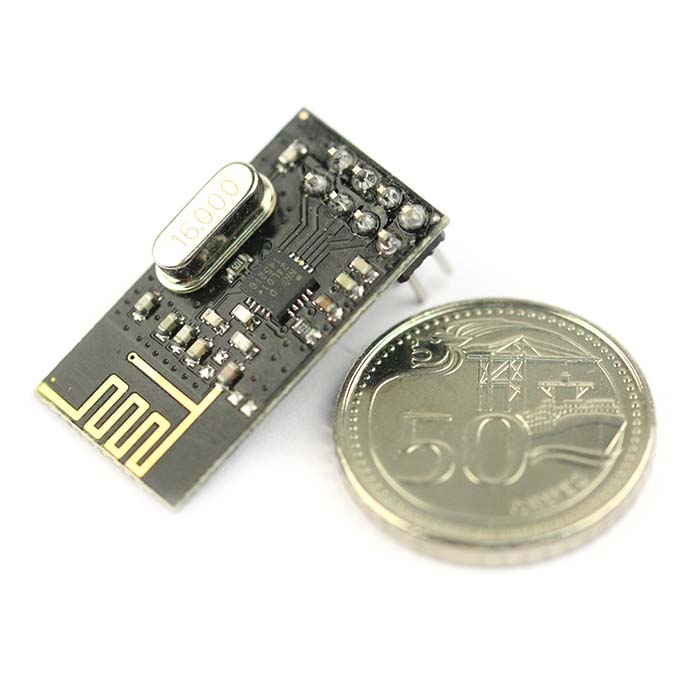

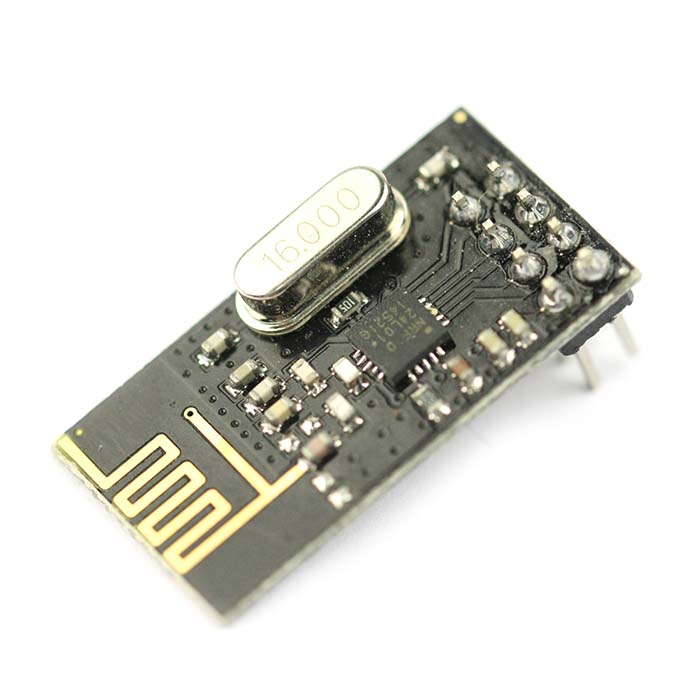

Transceiver nRF24L01+ Module with PCB Antenna

This module based on Nordic nRF24L01+, a highly integrated, ultra low power (ULP) 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific and Medical) band. Nordic nRF24L01+ integrates a complete 2.4GHz RF transceiver, RF synthesiser and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.

Features:

• Power supply : 1.9~3.6V
• 50m Range at 1000kbps
• 2Mbit Data Rate
• Auto Acknowledge
• Auto Re-Transmit
• Multiceiver - 6 Data Pipes
• 32 Byte separate TX and RX FIFOs
• 5V tolerant input pins
• Software selectable channel: 2400MHz to 2525MHz (125 Selectable channels)
• Minimum number of external components

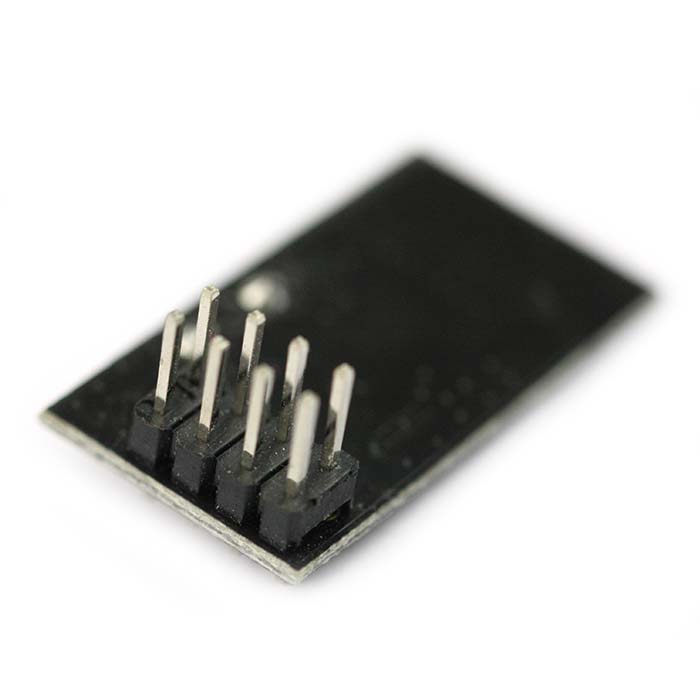

• Pins broken out : VCC, CE, CSN, SCK, MOSI, MISO, IRQ, GND
• Lots of application notes and support on Nordic Semiconductor Website

Documents:

• Pin Layout
• nrf24l01+ datasheet
• Adruino Playground - nRF24L01

Dimensions: 15 x 29mm
