Vibration Motor - 10x3.15mm

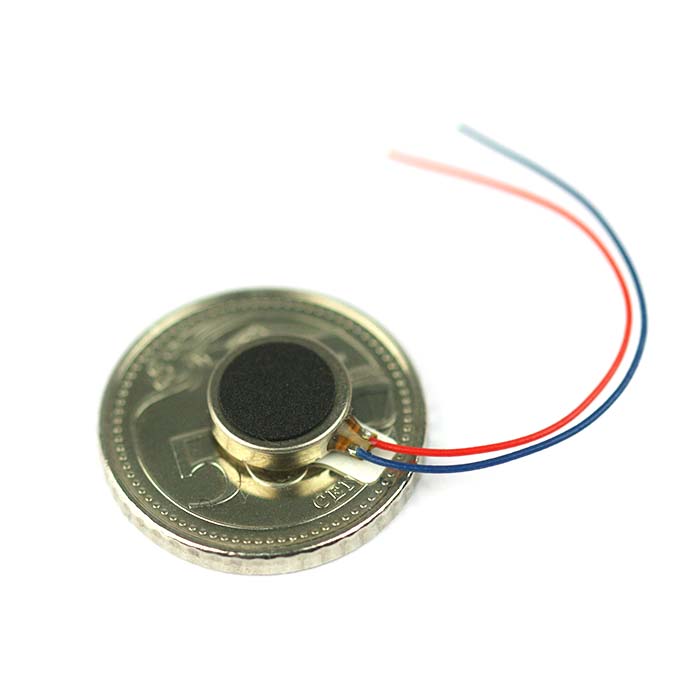

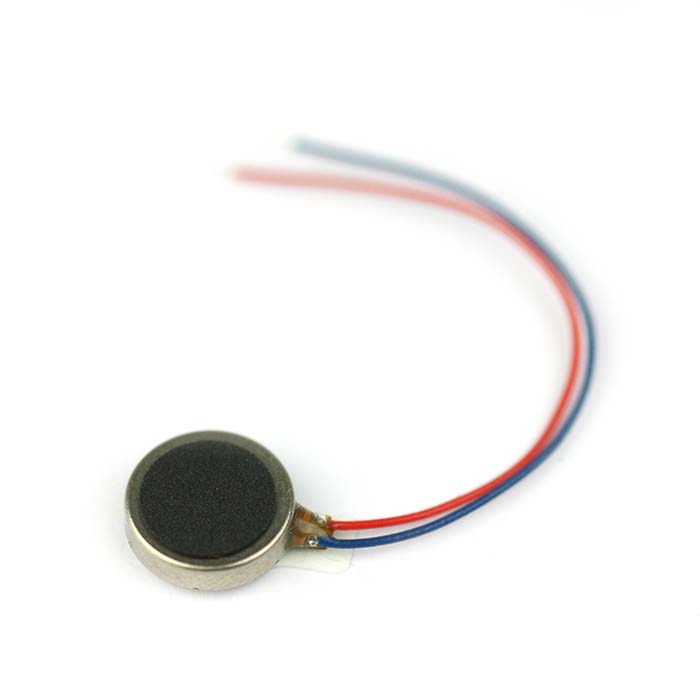

This itty-bitty, shaftless vibratory motor is perfect for non-audible indicators. Use in any number of applications to indicate to the wearer when a status has changed. All moving parts are protected within the housing. With a 2.6-3.6V operating range, these units shake crazily at 3V. Once anchored to a PCB or within a pocket, the unit vibrates softly but noticeably. This high quality unit comes with adhesive backing and reinforced connection wires.

Features:

• Operating Voltage: 2.6 to 3.6V
• Starting Voltage: 2.0V (Max)
• Rated Current: 80mA (Max.)
• Rated Speed: 12,500±3,000rpm

Documents:

• Dimension Drawing
