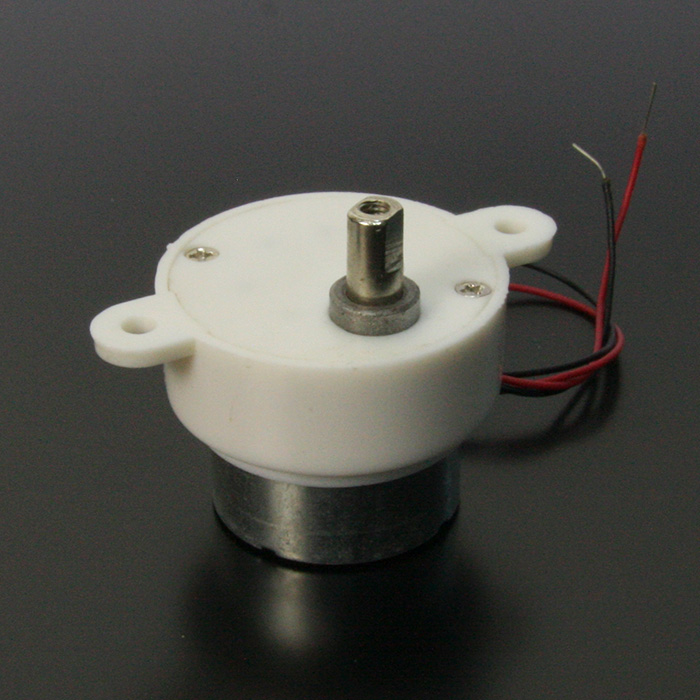

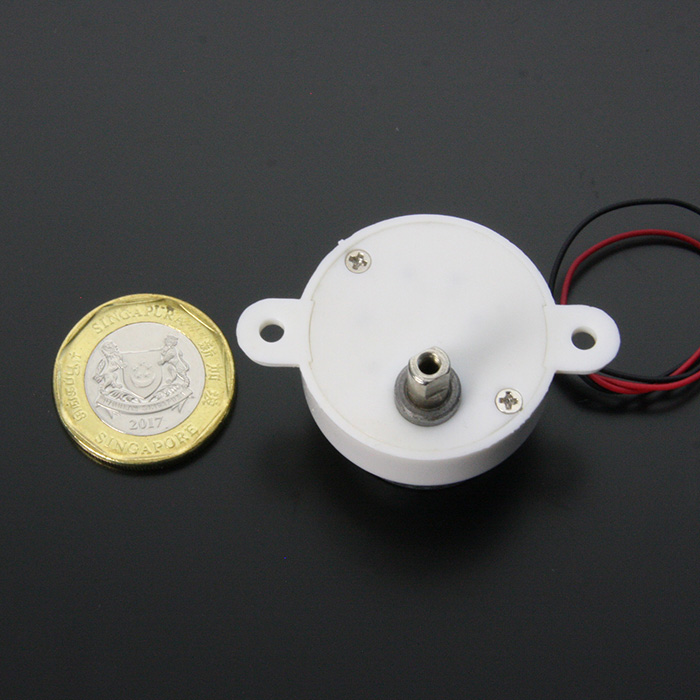

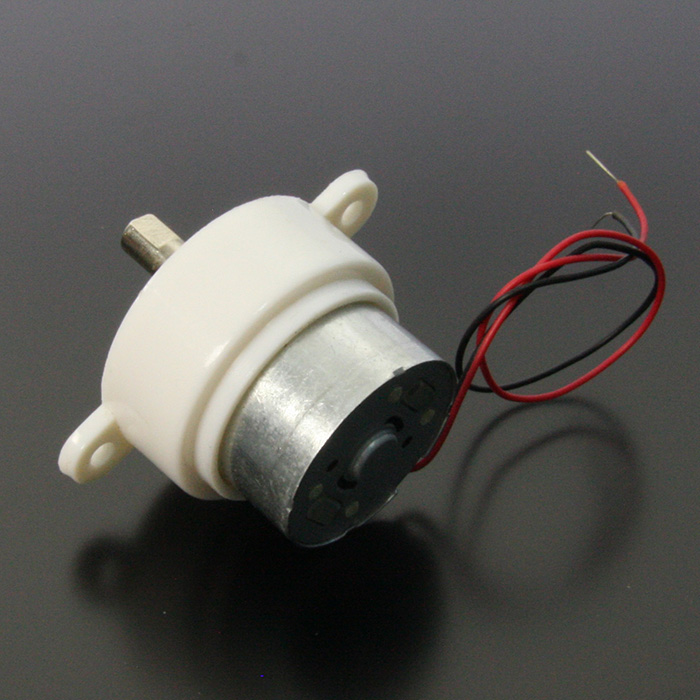

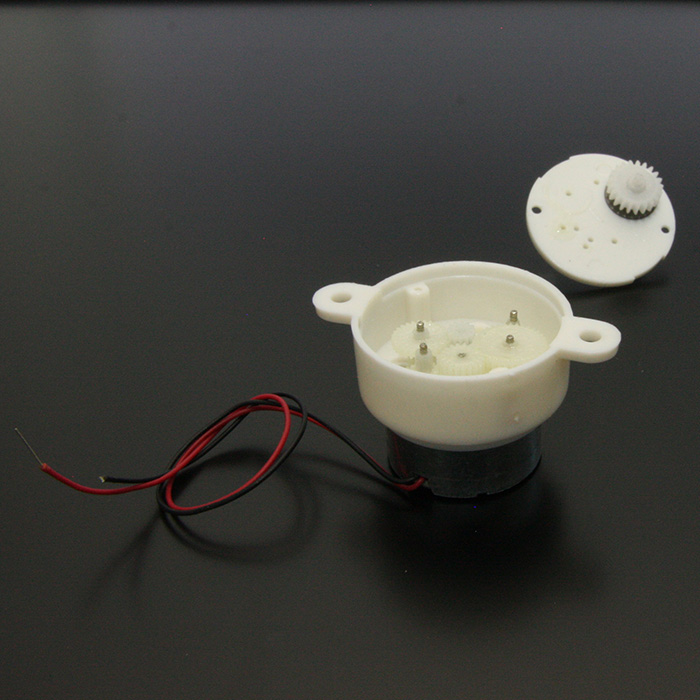

Low Speed Gearmotor - 3V 20rpm

This gear motor is designed to operate at low speed of 20rpm at 3V. It can operate up to 6V and the rotation can start at voltage as low as 0.8V. Each gear motor sports a 5mm diameter double D-shaft metal output shaft with a M3 threaded hole in the middle. The wire lead is about 12cm long

Features:

• Rated Voltage: 3V
• Speed: 20 RPM (@ 3V)
• Stall Torque: 0.2 kg.cm (@ 3V)
• No Load Current: 70 mA (@ 3V)
• Weight: 29g

Documents

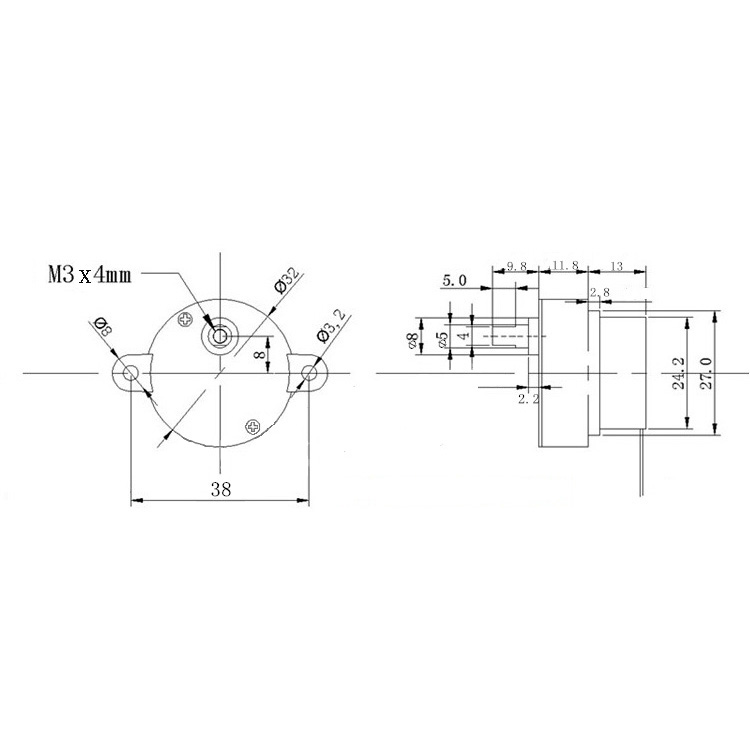

• Dimensional Drawing
