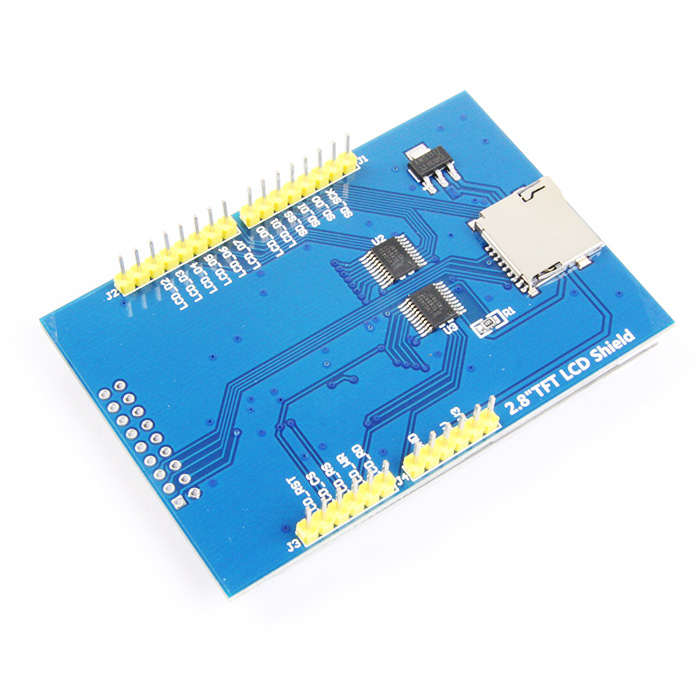

2.8" TFT Resistive Touch Shield for Arduino w/microSD Socket

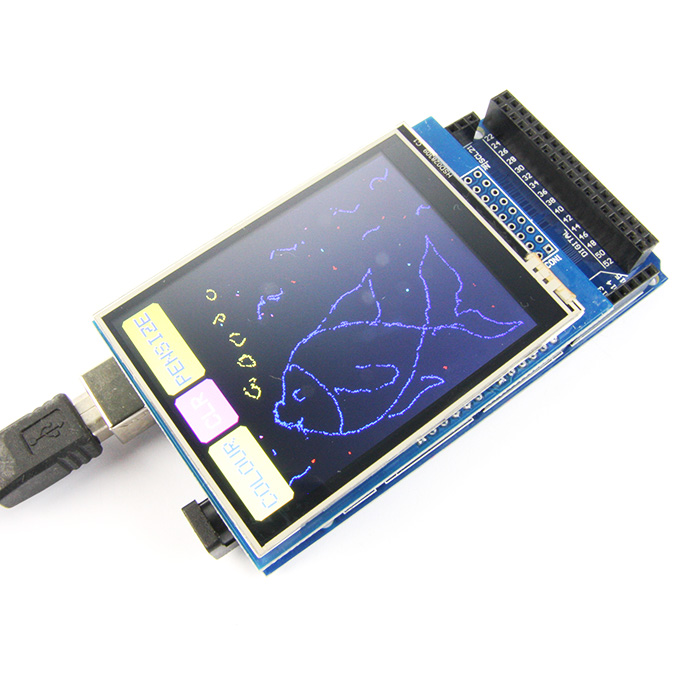

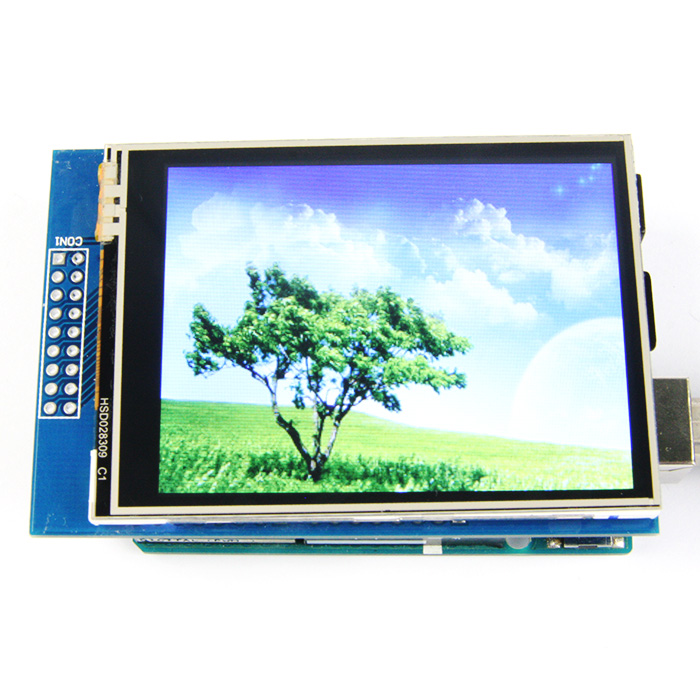

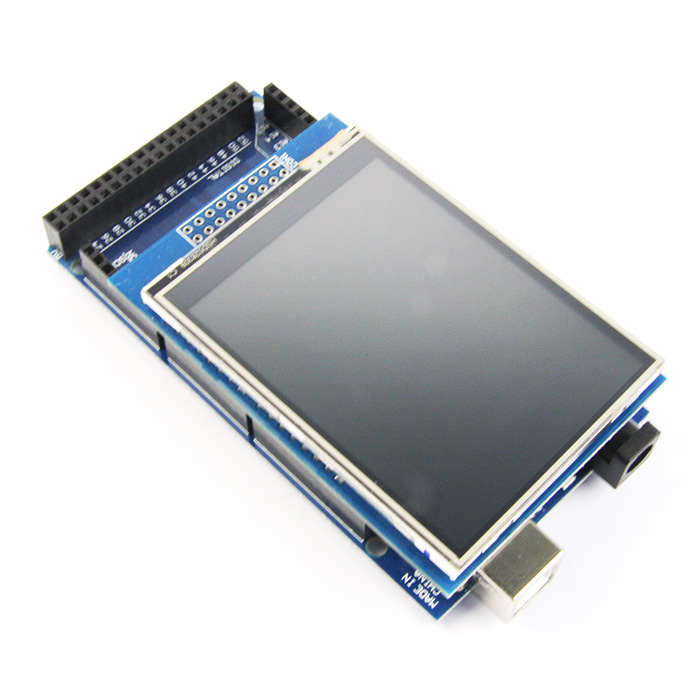

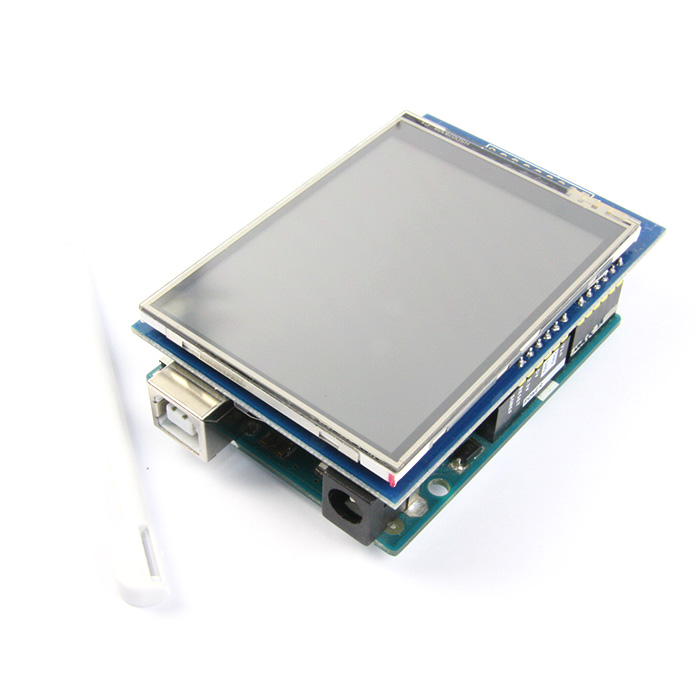

The 2.8" resistive touch LCD shield is specifically designed for the Arduino Uno and Mega. It features 2.8" screen with 240x320 pixels, and has a resistive touchscreen attached for direct user interaction. The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up the GUI library - you'll have it running in under 10 minutes!

Notes: The microSD socket in this shield does not support Arduino Mega.

Includes:

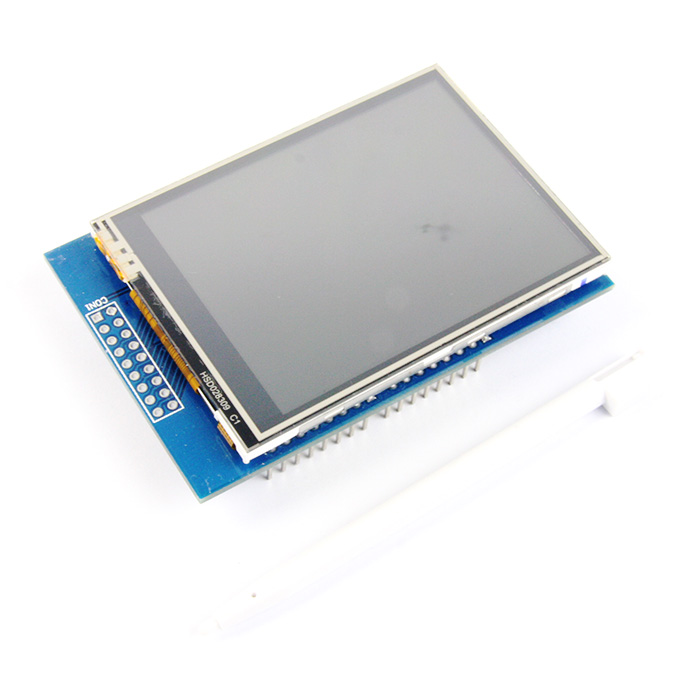

• 1x 2.8" TFT Resistive Touch Shield
• 1x Stylus

Features:

• 2.8" diagonal color resistive touchscreen TFT
• 240x320 resolution
• ILI9341 controller with built in video RAM buffer

Documents:

• ILI9341 datasheet
• Arduino library (Github)

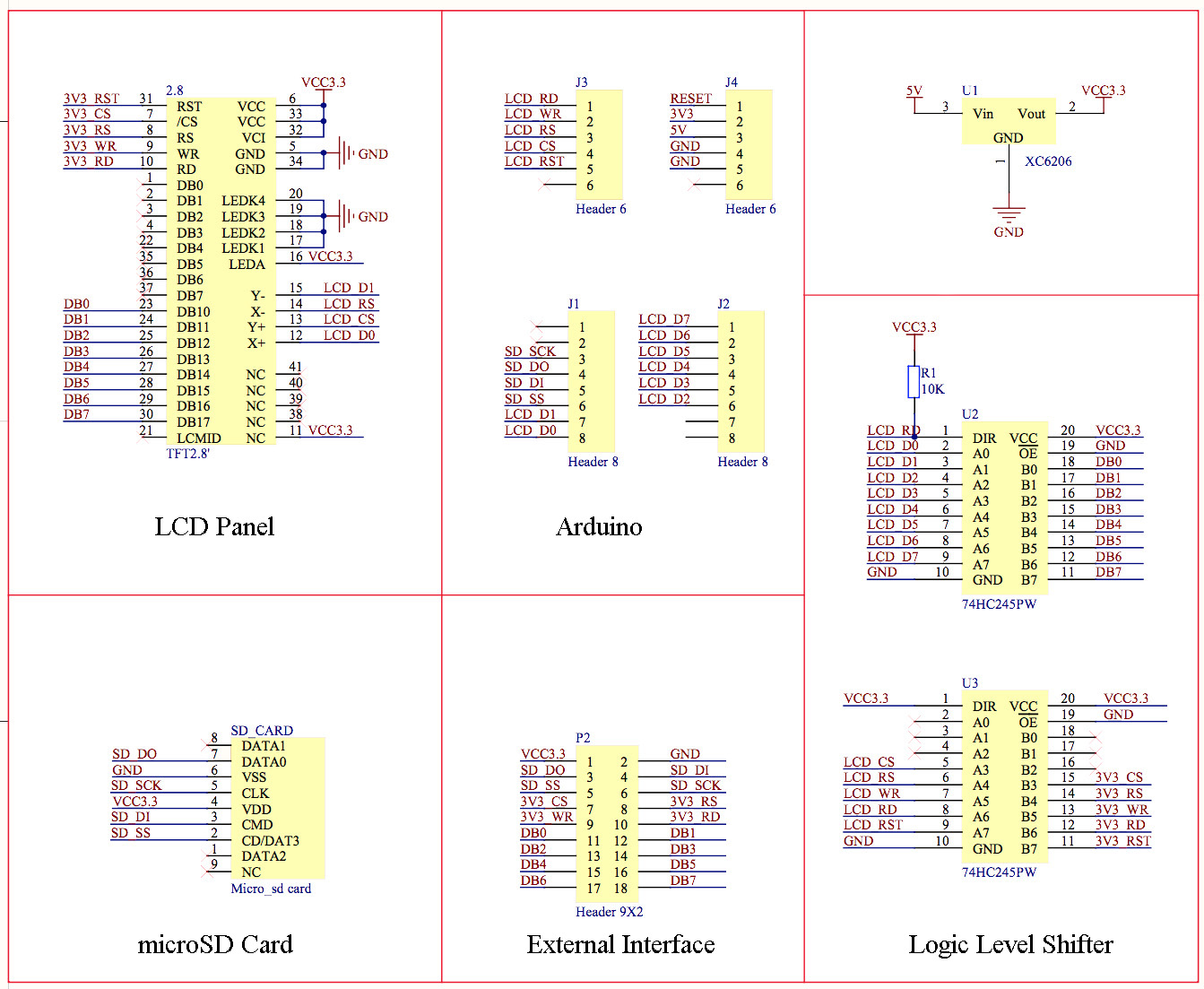

• Schematic
