micro:Gamepad

Micro:bit gamepad is an expansion gamepad based on micro:bit. You only need to plug in the micro:bit, it will turn into a wireless remote controller a wireless game console.

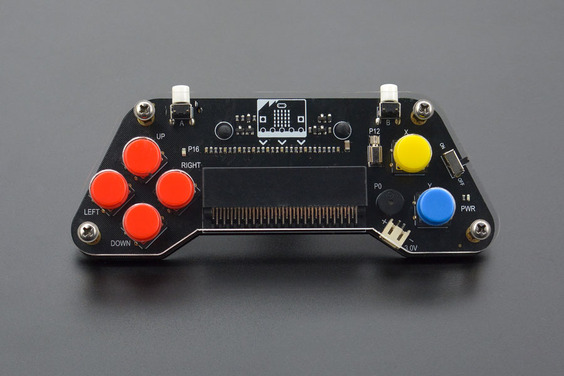

This product packaged with acrylic plate, that giving it a good feel and no longer feels like a bare circuit board. The gamepad has a total of 8 buttons, the left side have up, down, left, right four buttons, the right side has X, Y two buttons, and two buttons A, B are in the front of the gamepad.

The gamepad also has programmable built-in vibration motor, buzzer, and LED. Using graphical programming, it will turn into a multimedia vibration controller or multimedia interactive game console instantly. The programming platform supports MakeCode graphical programming and python. It is a very suitable tool for both beginners and masters.

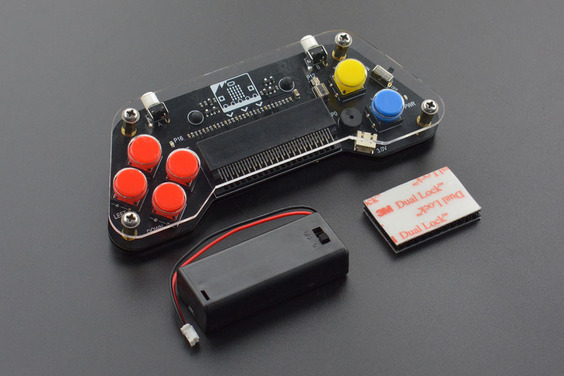

Kit includes:

• micro:bit Wireless Gamepad x1
• 2x AAA Battery Holder x1
• 3M HOOk&LOOP x1

Features

• Operating Voltage: 3VDC (2 AAA batteries)
• Number of Buttons: Up, Down, Left, Right, X, Y, A, B Total 8 programmable buttons
• Onboard Vibration motor × 1
• Onboard LED × 1
• Onboard Buzzer × 1
• Acrylic Floor x 1
• Acrylic Panel × 1
• Battery Box with Cover × 1
• Velcro × 2
• Copper Cylinder × 4
• Screw × 8
• Big Button ×6
• Small Button× 2
• Dimension:148x57(mm)/ 5.83*2.24in

Documents:

• Product wiki
