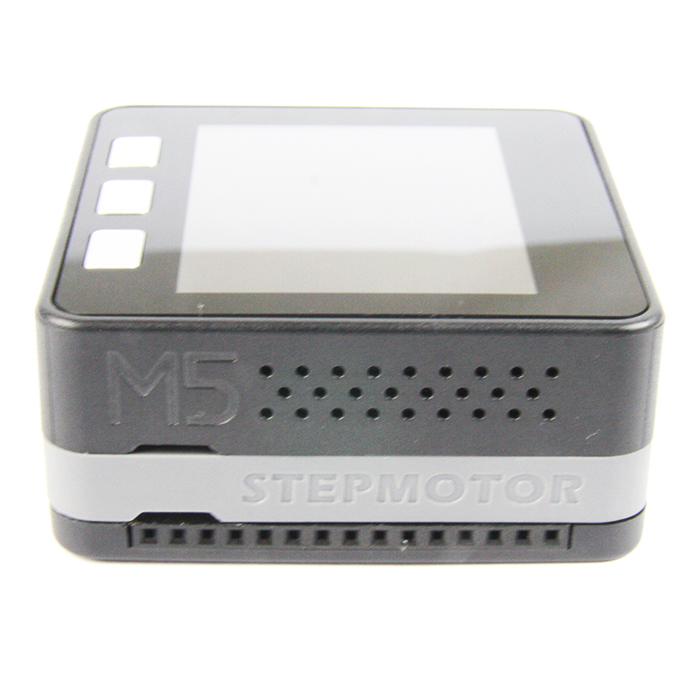

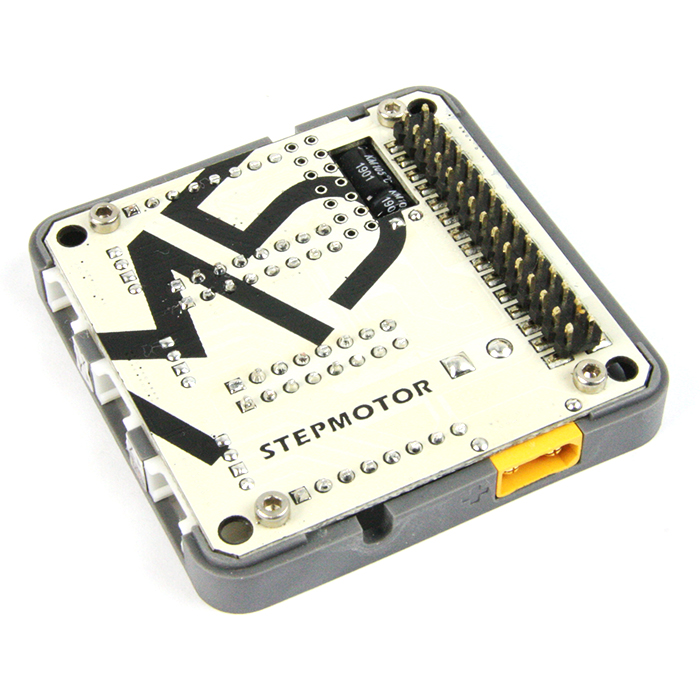

M5Stack Stackable Module - STEPMOTOR

M5Stack is a robust, Arduino compatible, open source development kit with stackable modules, enabling rapid and high-quality IoT prototyping.

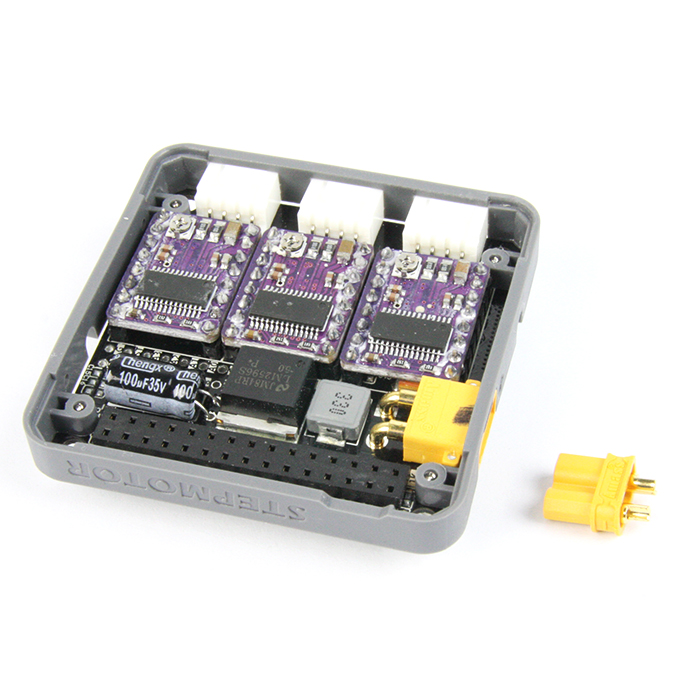

This M5Stack Stackable STEPMOTOR module is built around three units of DRV8825 stepper motor controllers. It is perfect for any motion project as it can drive up to 3 Stepper motors. The on-board MEGA328P Microcontroller is flashed with GRBL firmware to support high precision stepper motor control.

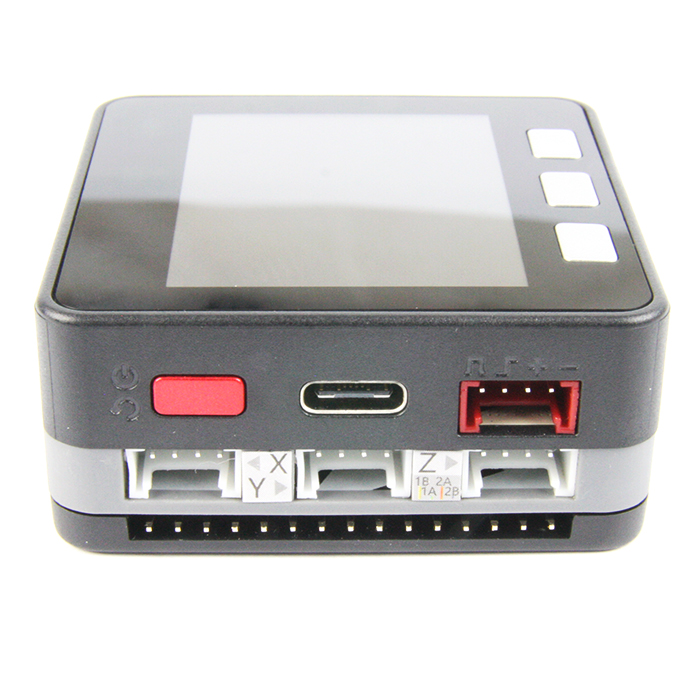

The module uses Grove connector to connect to stepper motor. Communication with M5Core is via I2C (0x70).

Features:

• 9-24V Power Input
• 3-way stepper motors (X, Y, Z)
• DC Connector Type: XT30 (female)
• I2C interface
• Grove connector for stepper motor
• Program platform: Arduino, Mrcropython, UIFlow(Blockly)

Documents:

• Arduino sample code
• Datasheet (DRV8825)
• Product page
