M5Stack Stackable Module - Servo

M5Stack is a robust, Arduino compatible, open source development kit with stackable modules, enabling rapid and high-quality IoT prototyping.

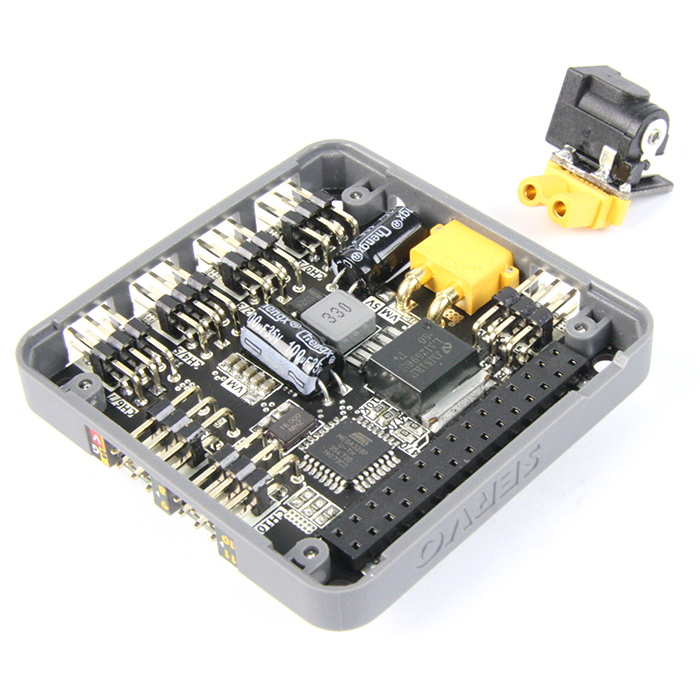

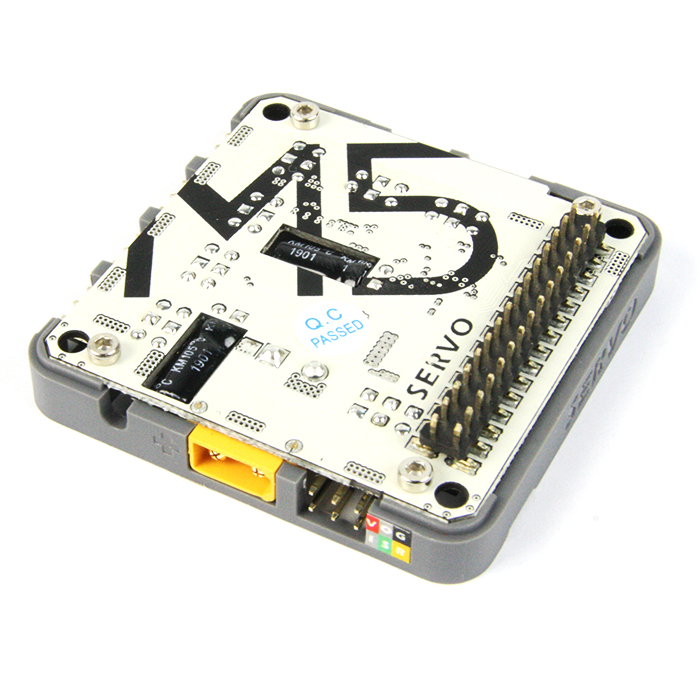

This M5Stack Stackable Servo module is designed for quick prototyping of servo motor project. It can supports up to 12 servo motors. The on-board MEGA328 microcontroller provides the precise timing for the servo signal.

The module communication with M5Core via I2C interface (address: 0x53).

Features:

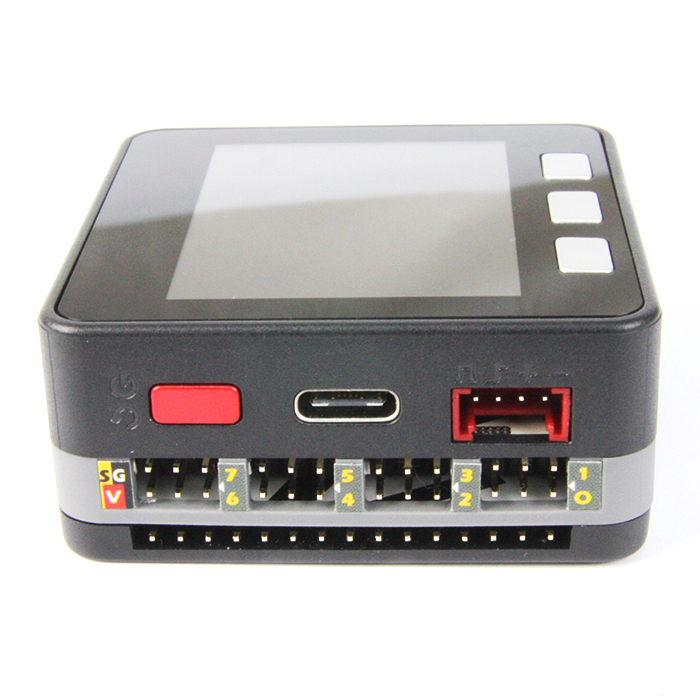

• 12x servo ports
• DC power input: 6-24V

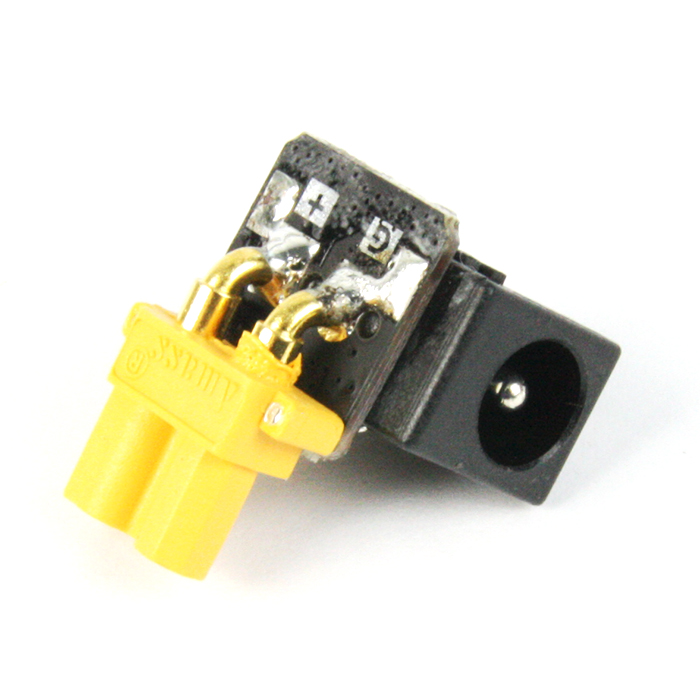

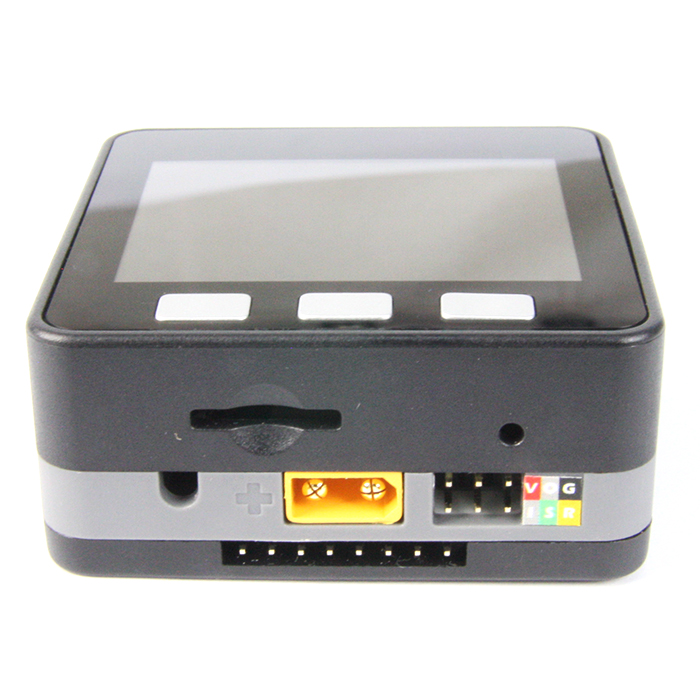

• DC Connector Type: XT30 (female)
• Power adapter interface: 5.5mm x 2.1mm
• Program platform: Arduino, Mrcropython, UIFlow(Blockly)

Documents:

• Arduino sample code
• Product page
