M5Stack Module - Angle

M5Stack is a robust, Arduino compatible, open source development kit with stackable modules, enabling rapid and high-quality IoT prototyping.

This M5Stack Angle Module is a rotary switch Unit, simply having a 10K potentiometer inside. This unit can be used for Continuous singal dialing control, such as volume, brightness, or motor speed.

A potentiometer is a manually adjustable, variable resistor with three terminals. Two terminals are connected to a resistive element, the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage. The out voltage is captured and converted by AD on ESP32 on portB.

Includes:

• Angle module

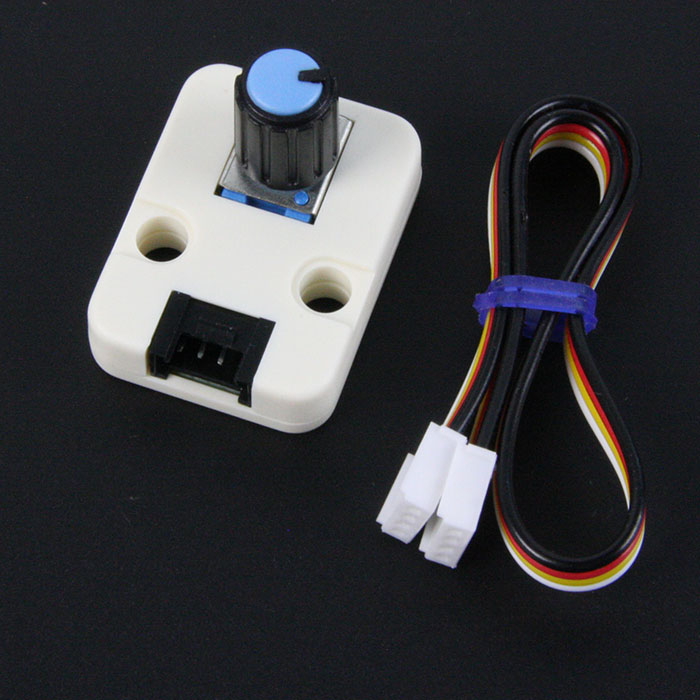

• GROVE Cable

Features:

• Output voltage range: 0 ~ 2500mV
• Program Platform: Arduino, UIFlow
• Two Lego installation holes
• GROVE interface

Dimensions: 32.2mm x 24.2mm x 21.7mm

Documents:

• Arduino sample code
• Product page
