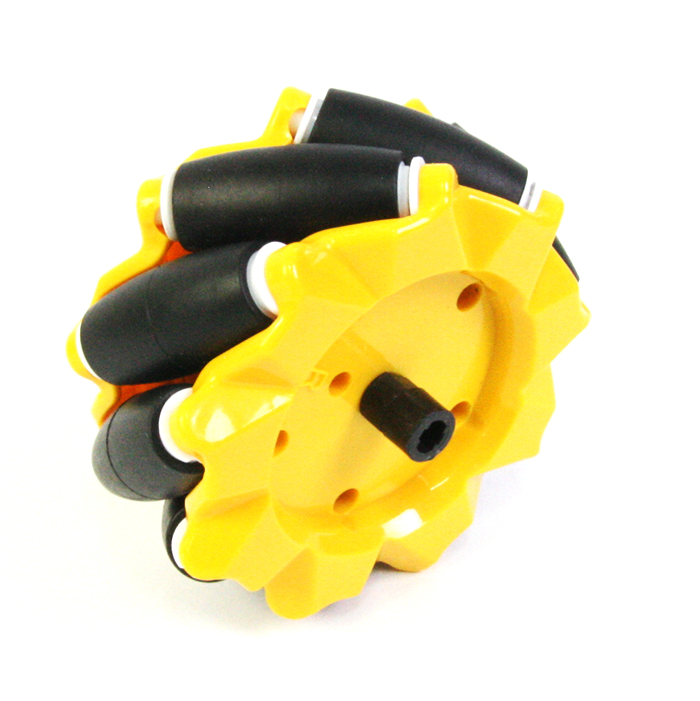

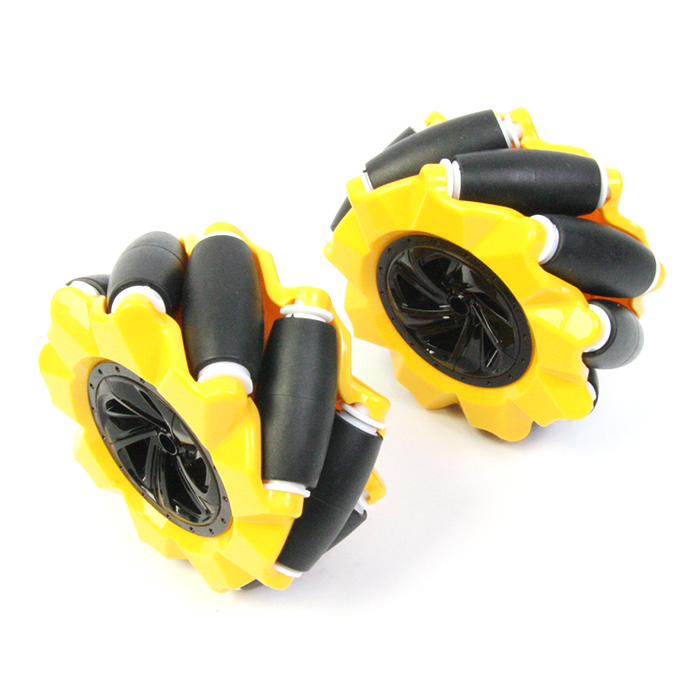

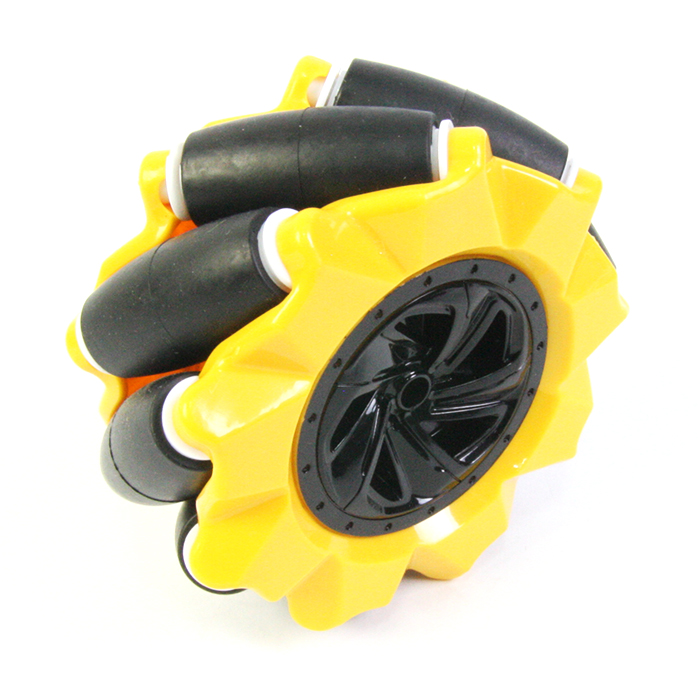

Mecanum Wheels For TT Gear Motor - 80mm Diameter (PAIR)

Mecanum wheels allow your robot to not only travel forward and backward, but also sideways! Nine rollers set on a 45° rotational axis parallel to the main rotational axis of the wheel enable a broad a range of movement. Rotating all four wheels in the same direction causes forward or backward movement, rotating the wheels on one side in an opposite direction to those on the other side causes the vehicle to rotate, and rotating the wheels on one diagonal in the opposite direction to those on the other diagonal causes side-to-side movement.

Since the wheel is based on the omnidirectional drive technology, users can freely control their robot car even in tight space.

These Mecanum wheels has a diameter of 80mm and is composed of 9 small rollers that are made of plastic and coated with quality and high-friction silicone rubber, which are rugged and impact-resistant.

Includes:

• Mecanum Wheel - Right
• Mecanum Wheel - Left

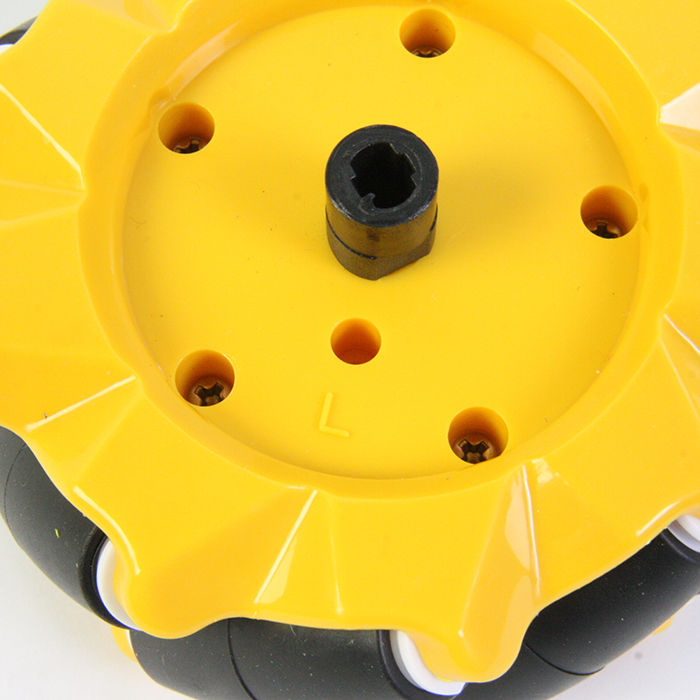

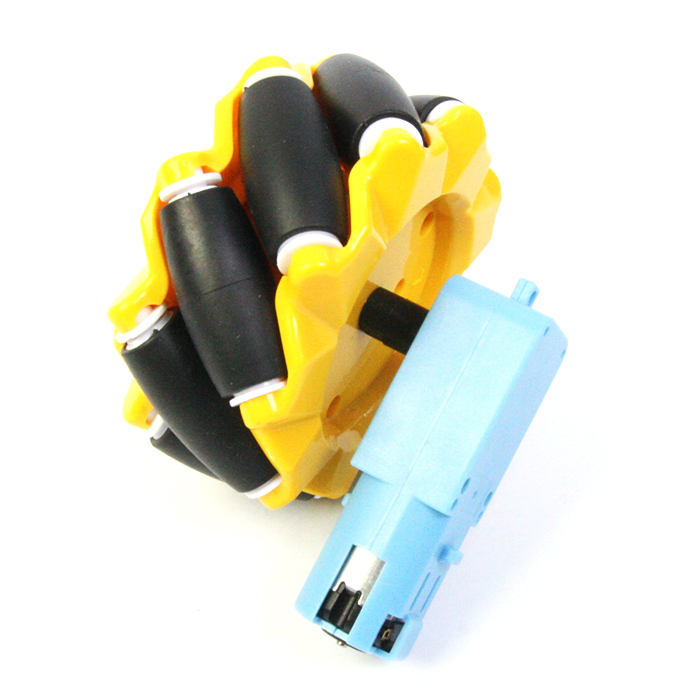

Note: There are two types of Mecanum wheels: left-handed wheel and right-handed wheel. Please pay attention to the L and R marking on the back of the wheel when assembly. This wheel is only for use with TT gearbox motors.

Documents:

• Dimensional drawing

Dimensions: 80 x 38mm
