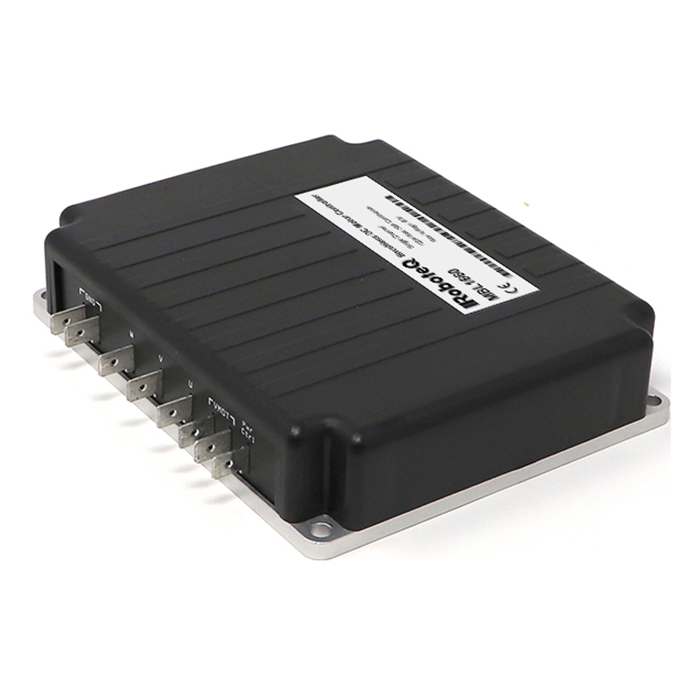

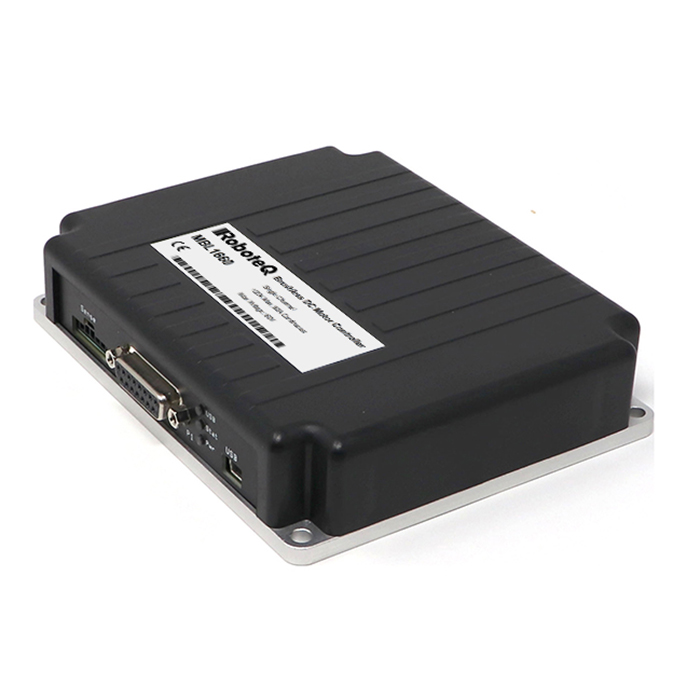

1 x 120A 60V Brushless DC Motor Controller (MBL1660)

Roboteq's MBL1660 is a feature-packed, medium-current single channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors' 3 windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure traveled distance. The motors may be operated in open or closed loop speed mode, position mode or in torque mode.

The MBL1660 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The MBL1660 accepts commands received from an RC radio, Analog Joystick, wireless modem, or microcomputer. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be configured, monitored and tuned in real-time using a Roboteq's free PC utility. The controller can also be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

NOTE: MBL1660 does not support Field Oriented Control (FOC).

Specifications:

• Power
  • Operating Voltage: Max 60VDC
  • Number of Channels: 1
  • Max Amps per Channel: 120A
  • Continuous Amps per Channel: 80A
  • Power Connections:Fast on
  • Field Oriented Control (FOC): NO
• Commutation
  • Trapezoidal
  • Sinusoidal
• Communication
  • RS232
  • USB
  • CANbus
• Rotor Sensor
  • Encoder
  • Hall
• Input/Outputs

  • Max Analog Inputs: 4
  • Max Digital Inputs: 6
  • Max Digital Outputs: 2
  • Max Pulse Inputs: 5
• Mechanical
  • Cooling: Conduction plate
  • Dimensions: 140mm x 113mm x 20mm
  • Weight: 380g

Documents:

• Datasheet
• Roboteq Controllers User Manual v2.0
• 3D Mechanical Model (STEP)
