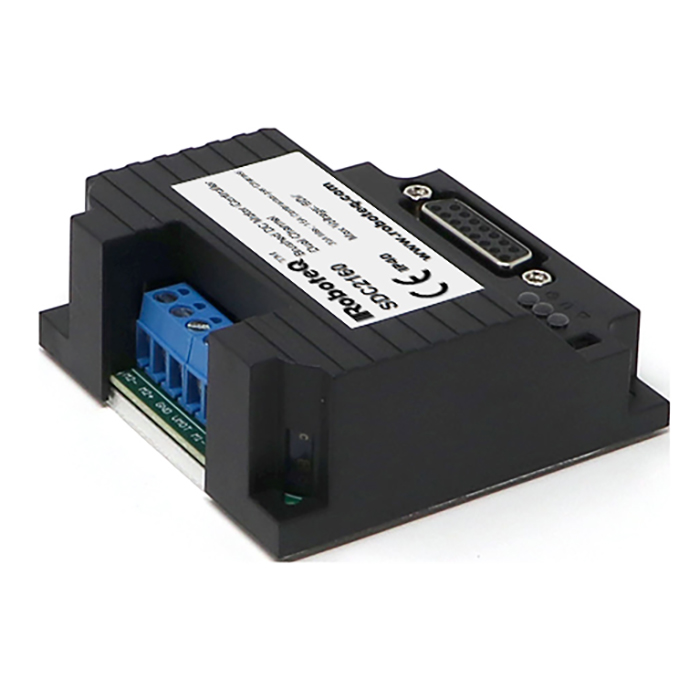

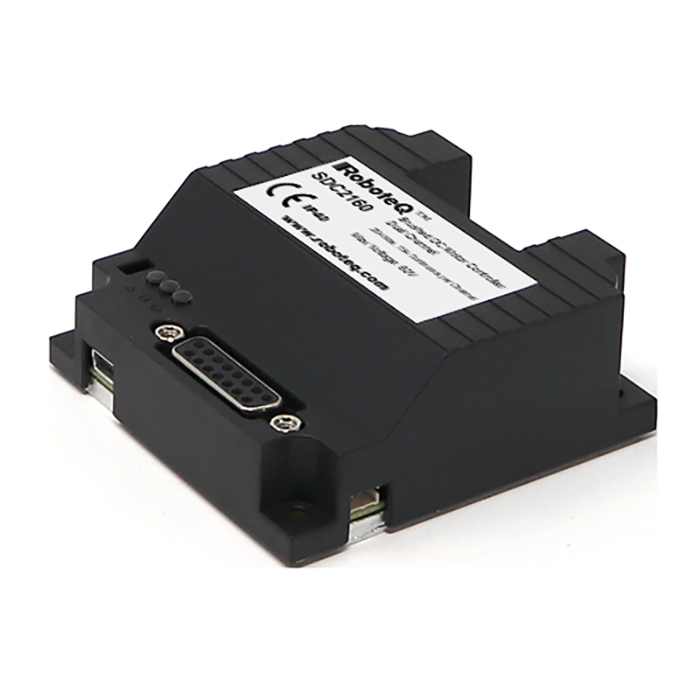

1 x 40A 60V Brushed DC Motor Controller (SDC2160S))

Fitting into a very compact 73x73mm enclosure, Roboteq's SDC2160S controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. A CAN bus interface allows up to 127 controllers to communicate at up to 1Mbit/s on a single twisted pair.

The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The SDC2160 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. For mobile robotic applications, the controller's two motor channels can either be operated independently or mixed to

set the direction and rotation of a vehicle by coordinating the motion of each motor. Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized by utilizing user generated Basic Language programs. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Specifications:

• Power
  • Max Voltage: 60V
  • Number of Channels: 1
  • Max Amps per Channel: 40A
  • Continuous Amps per Channel: 20A
  • Power Connections: Screw Terminals
• Communication
  • RS232
  • USB
  • CANbus
• Rotor Sensor
  • Encoder
• Input/Outputs

  • Max Analog Inputs: 4
  • Max Digital Inputs: 6
  • Max Digital Outputs: 2
  • Max Pulse Inputs: 5
• Mechanical
  • Cooling: Conduction plate
  • Dimensions: 70mm x 70mm x 20 mm
  • Weight: 120g

Documents:

• Datasheet
• Roboteq Controllers User Manual v2.0
• 3D Mechanical Model (STEP)
