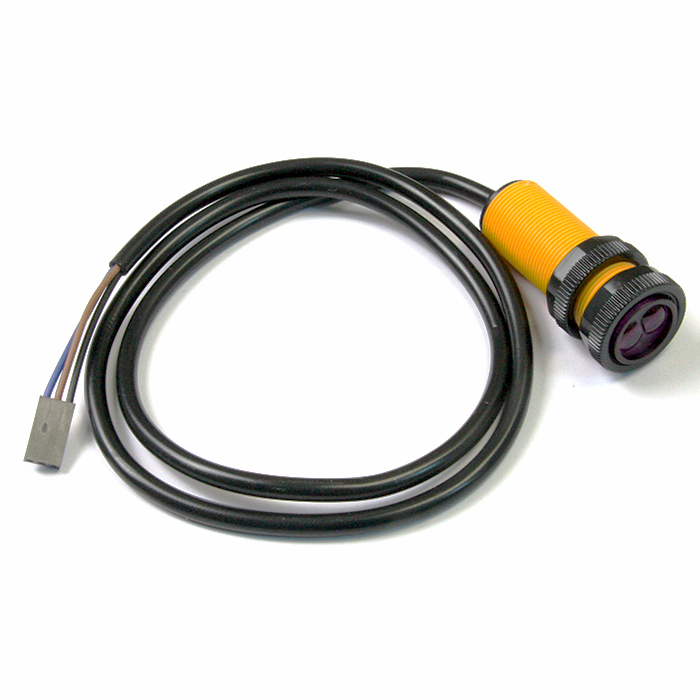

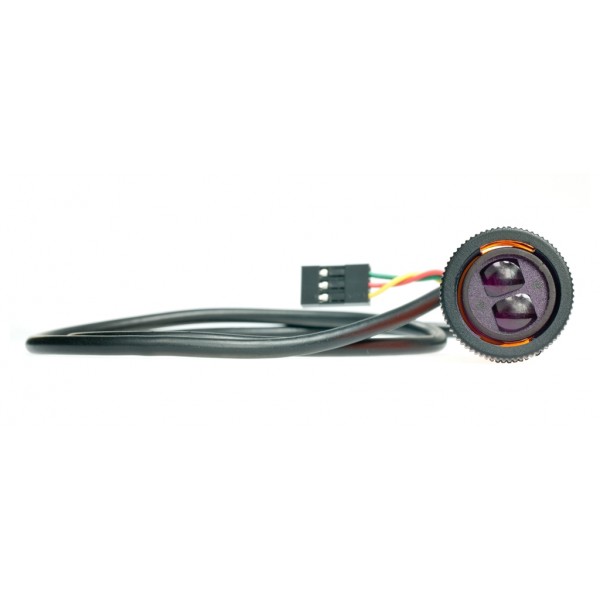

Adjustable Infrared Reflection Sensor (3- 80cm)

This is a simple to use infra-read sensor switch. Power it up with 5V and it can detects object within 3 to 80cm. It is widely used in mobile robot for obstacle detection, interactive media, industrial assembly line and many other applications.

The detection distance can be adjusted from 3- 80cm. It comes with a LED to show the sensing status.

Pinout

• Brown - 5V
• Black - Digital Output
• Blue - GND

Features

• Adjustable detection distance (CW- increase sensing distance, CCW-decrease sensing distance)
• Low power consumption
• Compact size

Specifications

• Power supply: 5V
• Working current: <100mA
• Detection distance: 3 - 80cm
• Digital output

Dimensions:

• Diameter: 17mm
• Length: 45mm
