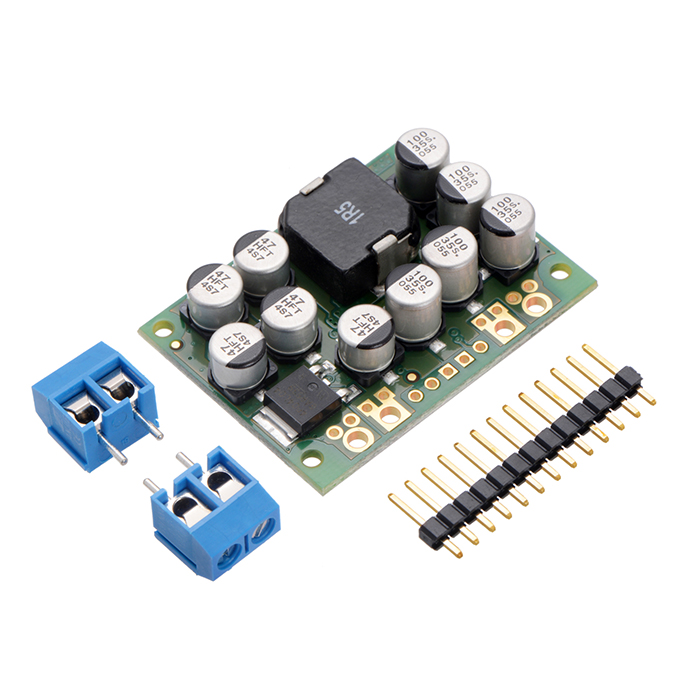

Pololu 9V, 15A Step-Down Voltage Regulator D24V150F9

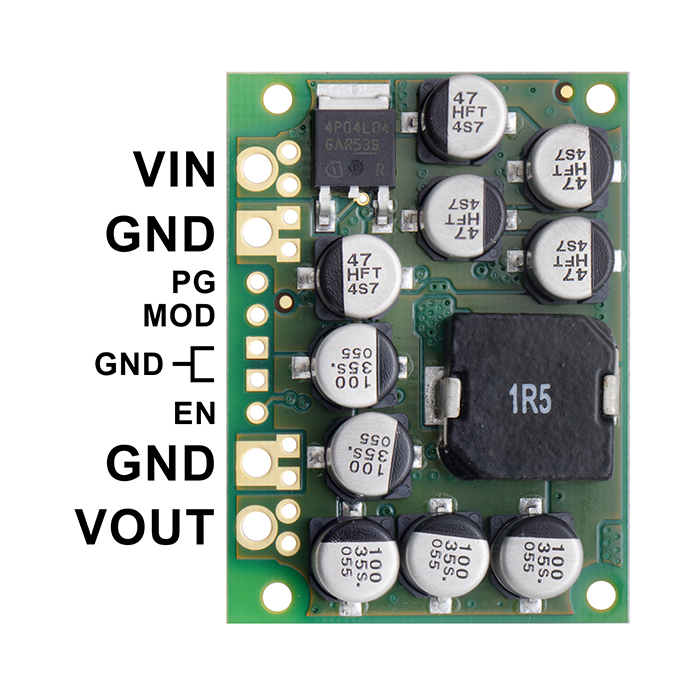

This synchronous switching step-down (or buck) regulator takes an input voltage of up to 40 V and efficiently reduces it to 9V with an available output current of around 15A. Typical efficiencies of 80% to 95% along with its high current capabilities make this regulator well suited for powering large loads. The regulator features reverse voltage protection and a power-good output that indicates when the regulator cannot adequately maintain the output voltage.

Specifications:

• Minimum operating voltage: 11V
• Maximum operating voltage: 40V

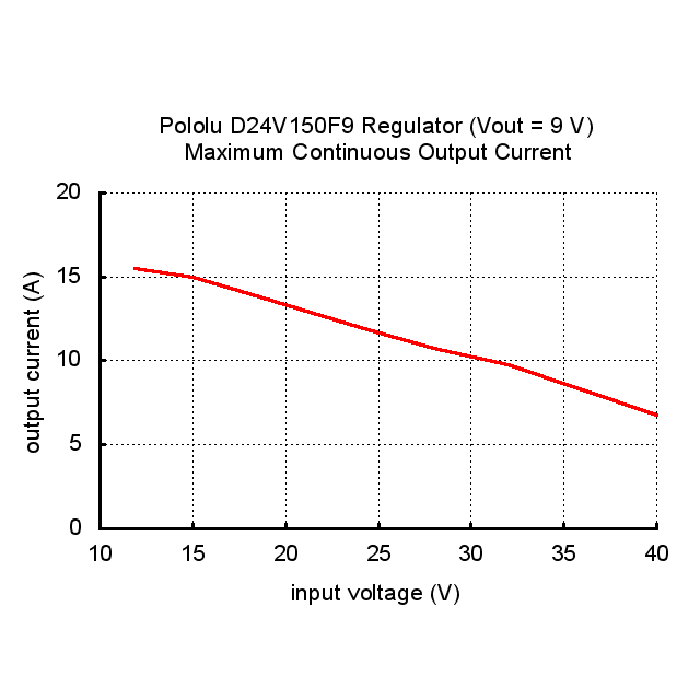

• Maximum output current: 15A
• Output voltage: 9V
• Reverse voltage protection: Yes
• Maximum quiescent current: 100 mA
• Typical efficiency of 80% to 95%

Documents:

• Product page

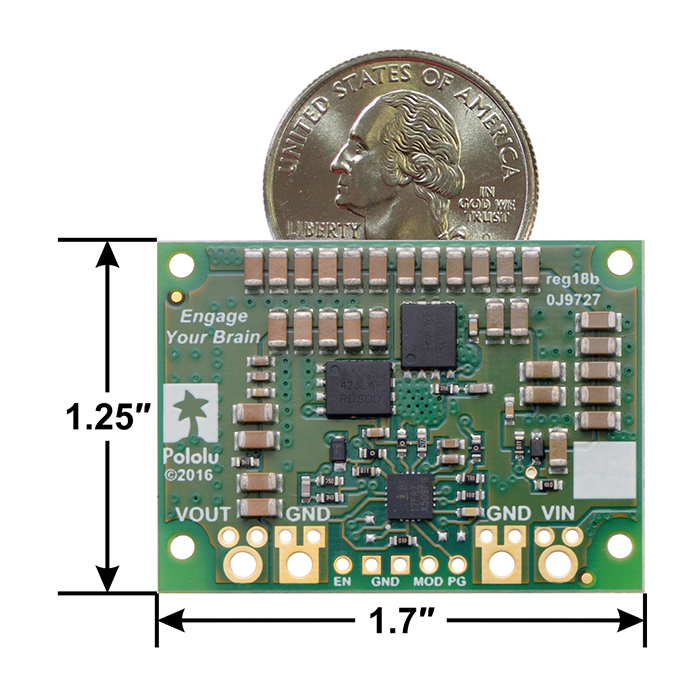

Dimensions:

• 1.7″ × 1.25″ × 0.43″
